Rate Loading Weight: | 3000 KG | Mast Stage: | 2 Normal /2 Fully free/3 Fully free |
---|---|---|---|
Lifting Height: | 3000/4000/4500/5000/6000/6500mm | Engine Model: | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
Rate Power: | 36.8/35.3/35.4 KW | Transimission: | Hydraulic Manual /Auto 2R,0,2F |
Fork Size: | 920/1070/1220/1500 mm | Tire Type: | Air / Solid |
Front Tire: | 12-16.5-10PR | 후륜 타이어: | 12-16.5-10PR |
강조하다: | 모든 지형 디젤 포크 픽터,120mm 디젤 포크리프트,커스터마이징 가능한 디젤 포크 픽터 |
1. Products Description
What is a Rough Terrain Forklift?
The term “rough terrain” or “all-terrain” forklift trucks are specifically designed for one purpose; to work outdoors on uneven surfaces. Rough terrain forklifts are used within industrial sites where uneven surfaces can exist, or building sites when offloading bricks on dry or wet conditions. They shine wherein an ordinary conventional forklift cannot move.
MCLLROY Rough Terrain Forklifts have unique performance in the material handling solutions market. Their reliability is recognized by the most demanding professionals throughout the world. Would you like to buy or rent a MCLLROY rough-terrain forklift truck? Your dealer will respond to your needs as soon as possible. Contact our professionals at any time to benefit from our personalized services.
2. Specification
Specification | FD30T-4WD | FD30T - 2WD |
Rate Loading Weight | 3000 KG | 3000 KG |
Mast Stage | 2 Normal /2 Fully free/3 Fully free | 2 Normal /2 Fully free/3 Fully free |
Lifting Height | 3000/4000/4500/5000/6000/6500mm | 3000/4000/4500/5000/6000/6500mm |
Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
Rate Power | 36.8/35.3/35.4 KW | 36.8/35.3/35.4 KW |
Transimission | Hydraulic Manual /Auto 2R,0,2F | Hydraulic auto 1R,0,1F |
Fork Size | 920/1070/1220/1500 mm | 920/1070/1220/1500 mm |
Tire Type | Air / Solid | Air / Solid |
Front Tire | 12-16.5-10PR | 12-16.5-14PR |
Rear Tire | 12-16.5-10PR | 27x10-12-12PR |
Overhead Guard Height | 2450 mm | 2210 mm |
Overall Length(with / without fork) | 4160 /3090 mm | 2940 mm |
3. Details and Advantages

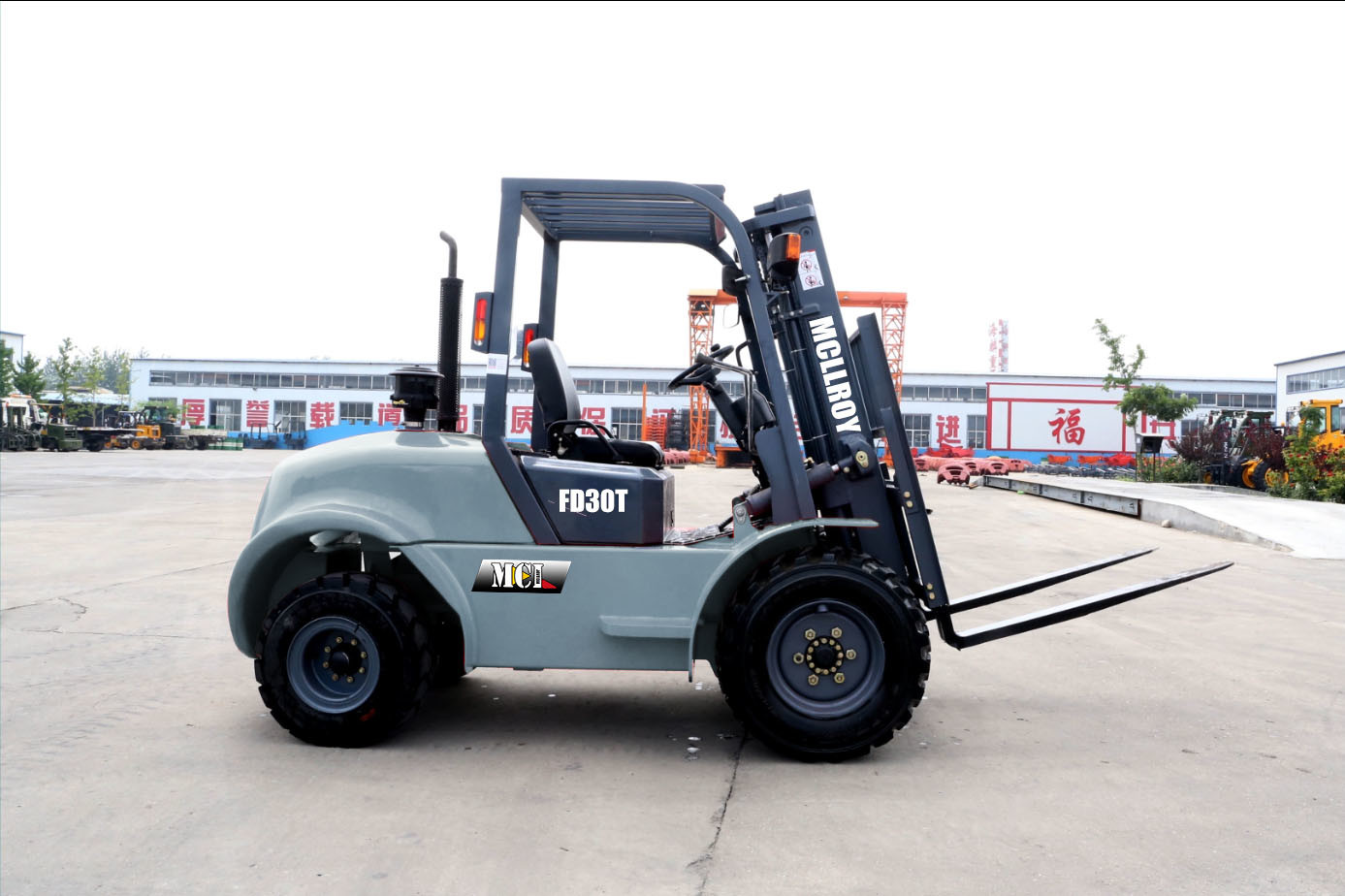

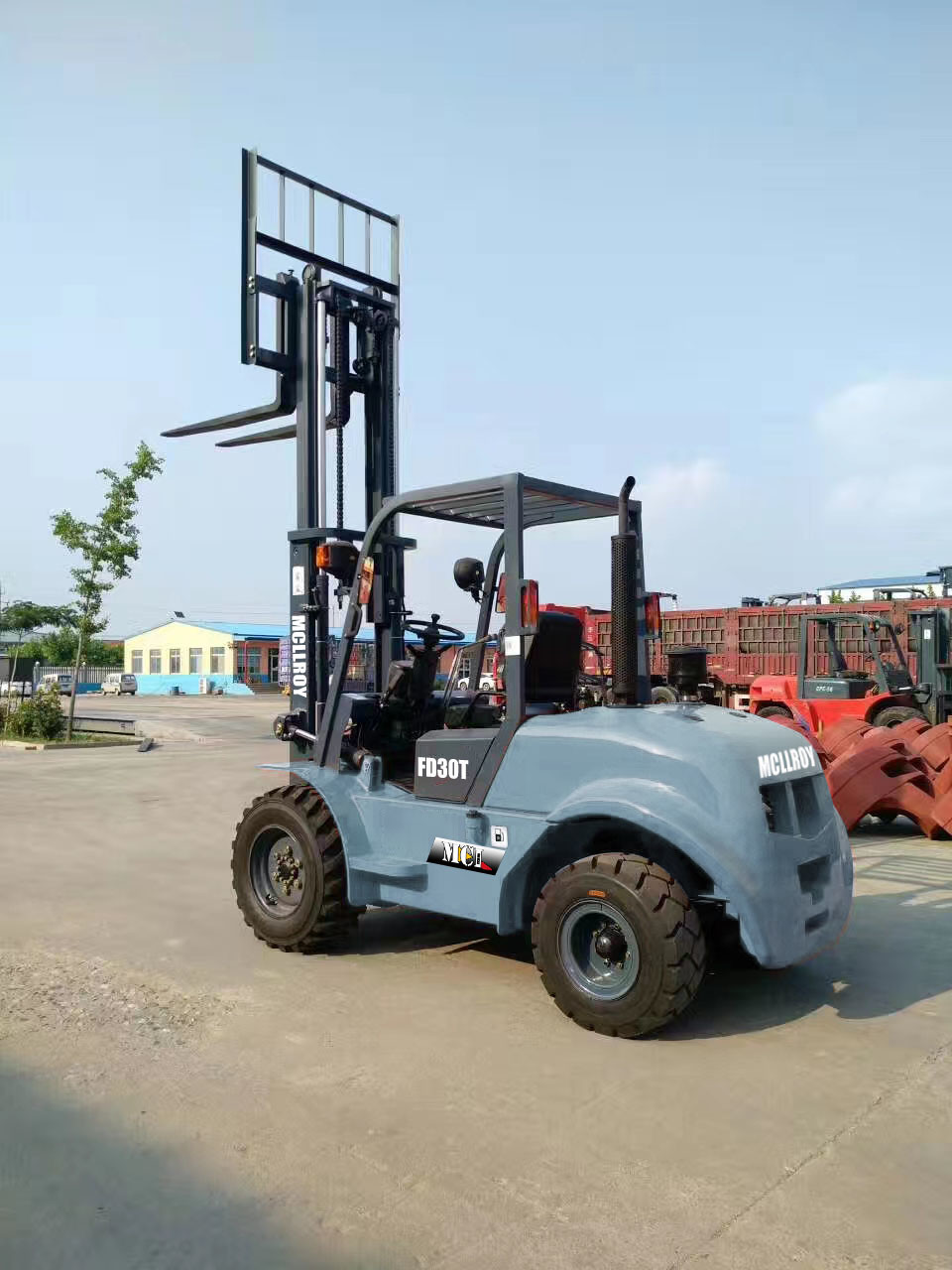

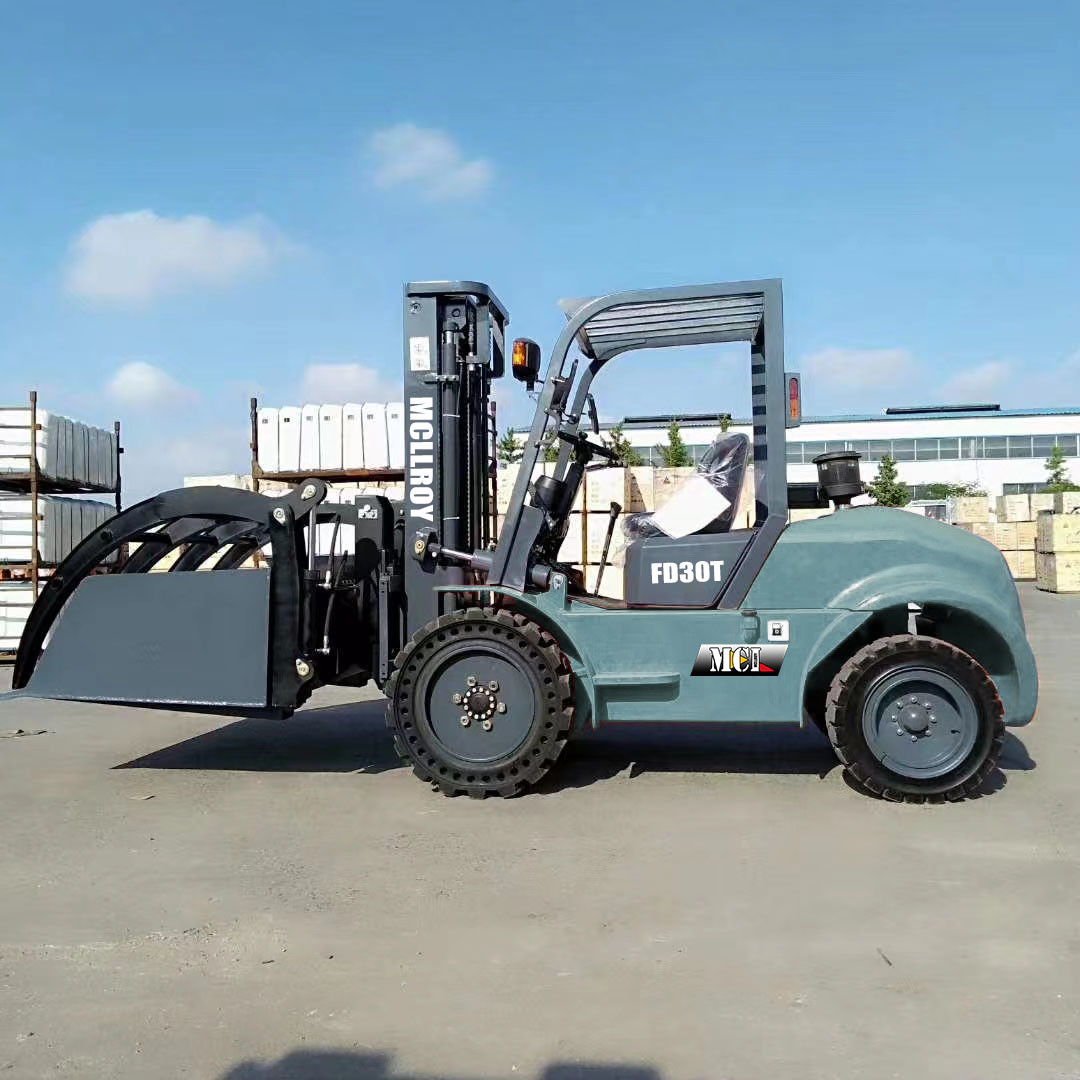

The MCLLROY’S FD30T-2/4 rough-terrain forklift is designed for sectors of activity operating under demanding conditions (construction, wood industry, events, mining...).
A true rough-terrain forklift, equipped with a ground clearance of 37 cm which gives it an excellent crossing capacity.
Its width and wheelbase optimize the stability of the machine.
The masts available on this truck are designed to operate in a difficult environment or with long loads, and they are robust and easy to use.
Equipped with a torque converter transmission, our forklift offers 4 speeds to allow you to do your work efficiently.
4. Certification
MCLLROY Forklift have passed all kinds of international certificates, CE, ISO9001, GHOST Certificates.
Especially, our CE certificate is made in Turkey. Forklifts' Quality definitely guaranteed.
5. Optional Configurations
1 | Solid tires (the Advanced brand or equivalent) |
|||
2 | Automatic transmission(1-4.5Ton) | |||
3 | Sideshift | |||
4 | Thicken Toyota seat (no shock absorber) | |||
5 | Toyota seat (with shock absorber) | |||
6 | Fork positioner | |||
7 | Closed cab | |||
8 | Double front tires(1-5Ton) | |||
9 | Normal double mast:3300-4000mm. | |||
10 | Full free double mast:3000-4000mm. | |||
11 | Full free triplex mast:4500-7500mm. | |||
12 | Fork length:920/1370/1550 mm | |||
13 | Extension fork |
6. Explosive View Of Main Parts
No | Part No | Description | Q'ty | Remark |
1 | FD30HA-C0001 | Drive unit | 1 | FD20-35 |
FD30YA-C0001 | Drive unit | 1 | FD2035 | |
FD35HD-C0001 | Drive unit | 1 | FD20-35 | |
FD35YD-C0001 | Drive unit | 1 | 4JG2 C240 | |
2 | GB/T93-1987 | Washer lock | 12 | |
3 | GB/T5785-1986 | Bolt | 12 | |
4 | GB/T93-1987 | Washer lock | 9 | |
5 | GB/T5782-1986 | Bolt | 9 | |
6 | FD30MA-C1001 | Packing | 1 |
